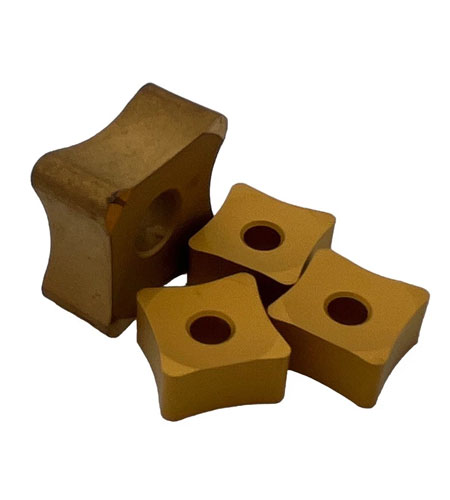

INSERT

                             TUBE DIAMETER

Order description

Radius

Metric [mm]

Imperial [“]

SNMX 1507-R04 CTCM135

R04

∅ -8

∅ to 0,314

SNMX 1507-R05 CTCM135

R05

∅ 8,1 - 10

∅ 0,318 - 0,393

SNMX 1507-R07 CTCM135

R07

∅ 10,1 - 14

∅ 0,394 - 0,551

SNMX 1507-R09 CTCM135

R09

∅ 14,1 - 18

∅ 0,552 - 0,708

SNMX 1507-R11 CTCM135

R11

∅ 18,1 - 22

∅ 0,709 - 0,866

SNMX 1507-R13 CTCM135

R12

∅ 22,1 - 24

∅ 0,867 - 0,944

SNMX 1507-R15 CTCM135

R15

∅ 24,1 - 30

∅ 0,945 - 1,181

SNMX 1507-R18 CTCM135

R18

∅ 30,1 - 36

∅ 1,182 - 1,417

SNMX 1507-R20 CTCM135

R20

∅ 36,1 - 40

∅ 1,418 - 1,574

SNMX 1507-R22 CTCM135

R22

∅ 40,1 - 44

∅ 1,575 - 1,732

SNMX 1507-R25 CTCM135

R25

∅ 44,1 - 50

∅ 1,734 - 1,968

SNMX 1507-R27 CTCM135

R27

∅ 50,1 - 54

∅ 1,968 - 2,125

SNMX 1507-R30 CTCM135

R30

∅ 54,1 - 60

∅ 2,126 - 2,362

SNMX 1507-R35 CTCM135

R35

∅ 60,1 - 70

∅ 2,363 - 2,756

SNMX 1507-R40 CTCM135

R40

∅ 70,1 - 80

∅ 2,757 - 3,149

SNMX 1507-R45 CTCM135

R45

∅ 80,1 - 190

∅ 3,150 - 7,480

SNMX 1507-R50 CTCM135

R50

∅ 190,1 - 100

∅ 7,481 - 3,937

SNMX 1507-R60 CTCM135

R60

∅ 100,1 - 120

∅ 3,938 - 4,724

SNMX 1507-R70 CTCM135

R70

∅ 120,1 - 140

∅ 4,725 - 5,511

SNMX 1507-R80 CTCM135

R80

∅ 140,1 - 160

∅ 5,512 - 6,299
